Belmont Traditional Shower Package - Concealed Valve with Fixed Head & Slider Kit

Belmont Traditional Shower Package - Concealed Valve with Fixed Head & Slider Kit in Chrome

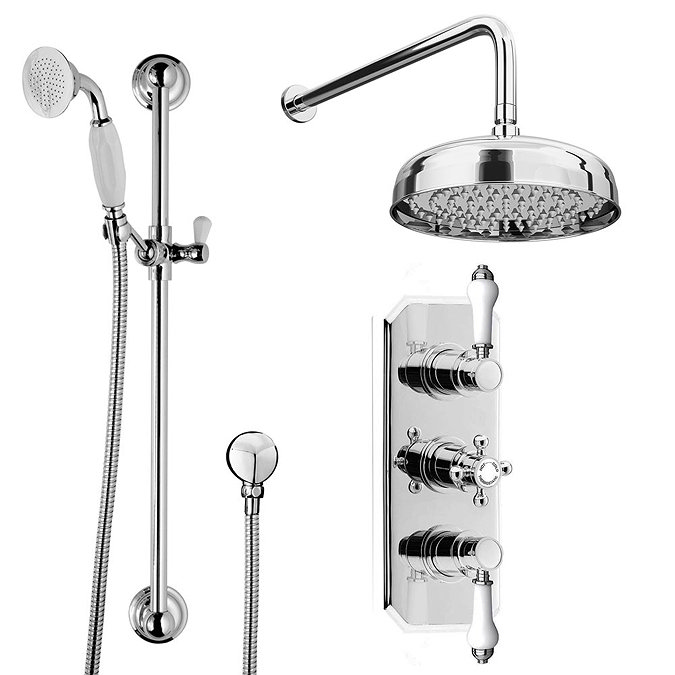

The stylish traditional Belmont shower package includes a triple concealed thermostatic shower valve, a 200mm fixed shower head with a wall-mounted arm, and a high-quality slider rail kit. This package brings substantial elegance to your bathroom. The Belmont shower package offers thermostatic showering via three easy-to-operate controls. It has separate controls for temperature and flow and can operate two shower accessories either separately or simultaneously.

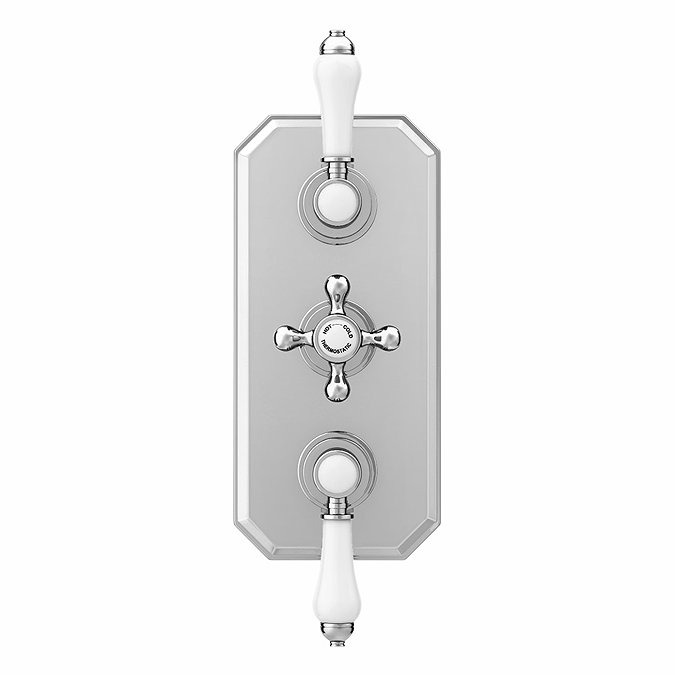

Shower Valve Details:

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Polished Chrome
• Internals: Brass
• Mounting: Wall-mounted
• Thermostatic Control: Yes
• Handles: Classic levers and crosshead
• Separate Controls: Temperature and flow
• On/Off Handle: Turns 90 degrees
• Outlet: Operates two outlets separately or simultaneously (2 Outlets)
• Water Pressure Range: 0.5 bar to 5 bar
• Hot Water Temperature: 55 to 85 Degrees

Shower Head Details:

• Size: Diameter 200mm, Height 100mm
• Shower Arm Length: 345mm
• With Swivel Ball Joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Pressure Requirement: 0.5 bar minimum
• Installation of the arm requires rear access behind the wall

Traditional Slide Rail Kit Details:

• Height: 647mm
• Colour/Finish: Chrome Plated
• Style: Traditional
• Rust-Resistant Hose
• Single Function Shower Handset
• Comprises of a Shower Handset, 1.5m Shower Flex, and Slider Rail
• Supplied with Chrome Effect Outlet Elbow



The package comes with a 5-year guarantee (1 Year on serviceable parts, for example, internal components such as check valves and cartridges).

Please note that all measurements are approximate and images are for illustrative purposes only.

The system requires a minimum water pressure of 0.5 bar. For gravity-fed systems, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps are not compatible.

Package Includes:

(1) Traditional Triple Concealed Thermostatic Shower Valve
(1) Round Elbow for Concealed Showers - Chrome
(1) Belmont Traditional 8" Apron Rose Shower Head with Arm
(1) Belmont Traditional Shower Handset, 1.5m Shower Flex, and Slider Rail

Gravity Fed Systems:

If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar, therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
