Chatsworth Savoy Traditional Radiator with Crosshead Valves

Chatsworth Savoy Traditional Radiator with Crosshead Valves

Part No.: MTY022-KES

£279.95

In Stock

Browse all Chatsworth

View in Real Homes

Overview

Chatsworth Savoy Traditional Radiator with Crosshead Valves

The Chatsworth Savoy Traditional Radiator, with its classic design, exudes luxury and timeless elegance. Crafted from steel, it heats up quickly and retains warmth for an extended period. This compact towel rail radiator, with a width of just 673mm, is ideal for cloakrooms, bathrooms, and kitchens where space is at a premium. It features a traditional towel rail that extends over the radiator, allowing you to hang your towels to dry without hindering the heat flow around the room. The radiator comes with two chrome valves, each adorned with a white cap in the centre of the crosshead handles, perfectly complementing the white body of the radiator.

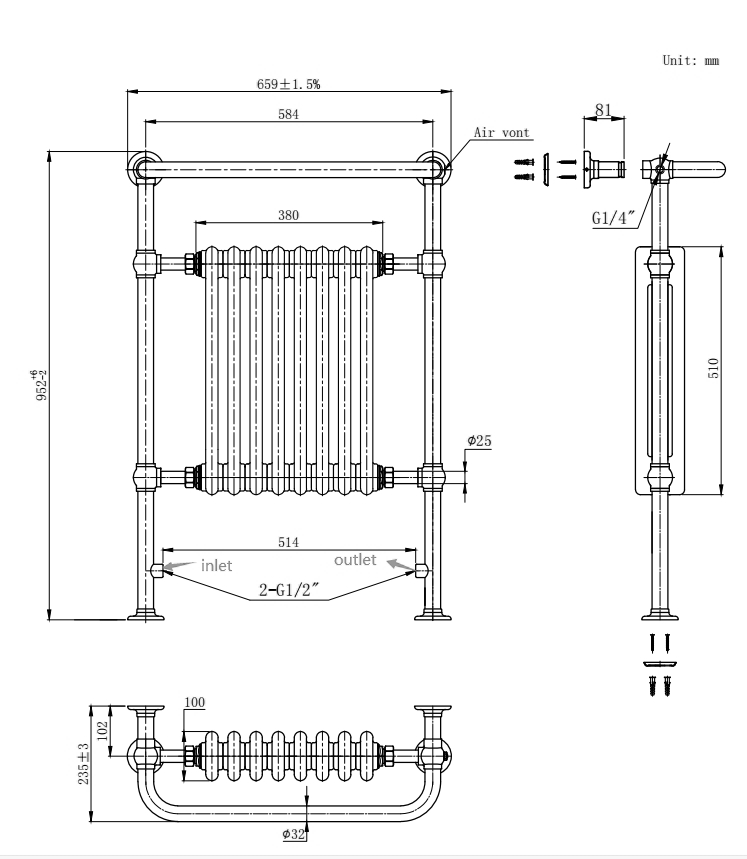

Chatsworth Savoy Traditional Radiator Details:

Depth: 235mm
Height: 952mm
Width: 659mm
Size, type, and position of connections: 1/2" FI BSP
Dry Mass: 15.8kg
Content: 7.35lt
BTU T50: 2305
∆ Watt T50: 676°C
Max Operating Pressure: 6 Bar
Projection from wall: 230mm
Traditional Design
Manufactured to the Highest Standards
Tube Diameter: 32mm
Heating Type: Central Heating
3 column 8 section radiator
Comes complete with fixing screws
Tested and Certified BS EN 442-1 Standards
UKCA / CE Marked
ISO9001:2015 Registered Manufacturer

Traditional Crosshead Angled Radiator Valves Details:

Style: Traditional
Colour/Finish: Polished Chrome
Material: Brass Internals
Type: Manual
White ceramic cap in the centre of the crosshead handle
Smooth Operation with Quality Components
Comes as a Pair
Angled Valve
Manual radiator valves control the flow of hot water from the boiler into the radiator.
Supplied with 15mm water-carrying pipes and concealing plates
Adjustable - Can be cut down to the required length
Please note that the tubes are water-carrying and are designed to be connected to the copper pipe below the floor. Only use compression fittings when connecting to these pipe kits. Solder fittings or push-fit fittings are not suitable.

We recommend that pipework is not installed until the radiator or heated towel rail is received.

All images are for illustration purposes only and all measurements are approximate.

Guarantee: 5 Years

Package Includes:

(1) Chatsworth Savoy Traditional Radiator - Chrome
(1) Pair of Traditional Chrome Plated Angled Radiator Valves with Pipes & Concealing Plates

Product Overview

Dimensions

Q&A

12 Questions

Do the flanges on the upright pipes move or are they fixed? they fixed as the measurements dont add up ie valve centre to floor is 90mm =

Asked by John

ANSWER

Technical Team. replied on 9th May 2022

Hi, Yes the shroud pipe covers on the upright feed pipes do move up & down. Thanks. Technical Team.

does this come in brass/gold colour

Asked by Antoinette

ANSWER

Nathan replied on 1st June 2021

Hi There, Thank you for your question. This would be the closest option. /savoy-antique-bronze-traditional-heated-towel-rail Kind Regards.

Can these values be position on the outside rather than the inside of the radiator?

Asked by MIke T

ANSWER

Technical Team replied on 28th April 2021

Hi Mike, Thanks for your question. I'm afraid not, this towel rails flow & return connections are fixed on the inner. Thanks. Technical Team

Hi, Are the two 'feet' or floor flanges on the radiator fixed or do they slide?

Asked by Ferrari sparkle pants

ANSWER

Nathan replied on 28th January 2021

Hello, Thank you for your question. Unfortunately, these are fixed and cannot be moved. We would not advise cutting this item as it would void the product's warranty. Kind Regards.

can your modern straight rad valves be fitted to this?

Asked by Rory

ANSWER

Shaun replied on 30th August 2019

Hi there, Straight radiator valves can be used witg this product. If you wish to have a custom package made please call us on 0345 862 2878 to discuss your requirements. All the best!

What is the heat otput of this model?

Asked by Peter

ANSWER

Sandra replied on 30th November 2016

Hello, the Output at 60ºC 3520 BTU's, 1026 watts. Many thanks

Is this a true white?

Asked by Surrey

ANSWER

Joe replied on 14th January 2015

Hi Melanie. Due to the nature of the enamelling, this isn't bright 100% white, normally it is just on white, but to suit the traditional look, it is slightly darker. They always look great though!

Are these cross angled rad valves suitable for combi boiler

Asked by Griff

ANSWER

craig replied on 28th August 2014

Hi, I'm not really sure of your question you may wish to seek the advise of a local plumber. Hope this helps!

can the valve accept the feed pipes if they come throught the wall rather than verticle from the floor?

Asked by jim

ANSWER

Adam replied on 17th July 2014

Hi, this would be possible with the Premier Savoy Traditional Radiator with Angled Crosshead Valves. The valves would have to be tightened so they were facing the wall instead of the floor like in the picture on our site. Thanks.

What is the difference between this model and the same sized traditional model? Apart from the price...

Asked by Simon

ANSWER

Louise replied on 14th January 2014

I am not too sure which two products you are referring to,please contact us for further assistance 0800 862 0878
